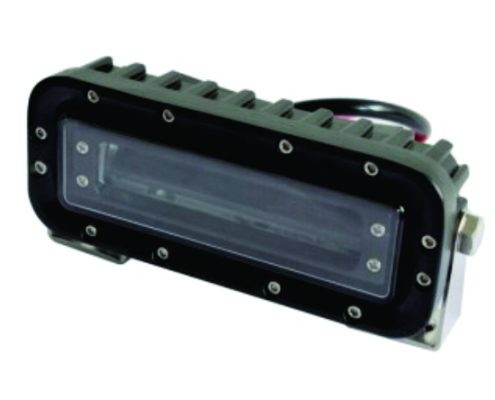

Forklift Safety Zone Red LED Lights
The Red LED Warning Lights are mounted on the top of the forklift cage and project a long, thin red beam on the floor adjacent to the forklift’s sides. The position of the light on the floor makes pedestrians aware of the safe distance to keep when alongside a forklift.
Suitable for all makes and models of forklifts and material handling equipment used predominantly indoors.
Available individually or as a discounted triple pack (three lights generally installed per forklift).
Features
- Predominantly for indoor use
- Rugged Die Cast Aluminum Alloy Housing
- Hard Coated Polycarbonate Lens
- Rear cooling fins for heat dissipation
- High Power OSRAM LED
- Waterproof IP:68 Rated
- Dustproof
- Vibration Proof
- Shockproof
- Double insulated wire for electrical connection
- Suitable for Low and High Temperature Environments
- Reverse Polarity Protected
- Beam: Line Beam
- Warranty: 1 year
Technical Specifications
- LEDs: 6 x 3W Super Bright OSRAM High Power LEDs
- Voltage: 10～80V DC
- Color: Red
- Life Time: >50,000 Hours
- Working Temperature: -45°C to 85°C
- Dimensions: 152 x 60 x 57 mm
Mounting
- Holes available/drilled in Forklift: Use Stainless Steel Mounting Bracket (included) and Stainless Steel Bolts (included)
- Holes not available in Forklift: Use Stainless Steel Mounting Brackets (included) but remove the Stainless Steel Bolts and fasten the Zone Light to forklift cage with Stainless Steel Hose Clamps instead (not included).
- Typically mounted and adjusted so Distance “A” is 0.5m – 1.5m away from Forklift
- Hanging Height refers to the height above the ground. Typically the light is mounted on top of the forklift so Hanging Height is set by forklift height.
- Beam Length refers to Dimension “B”.
- Beam Thickness is how ‘fat’ the beam is on the ground, i.e. the higher the light the more it spreads and hence the fatter it is.
- Lux is the measure of illuminance.
Available now from Forklift Battery Chargers Direct online store.
