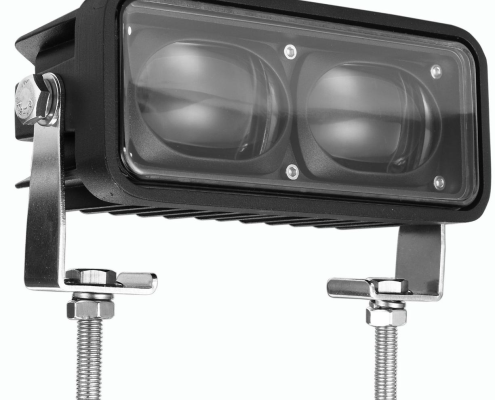

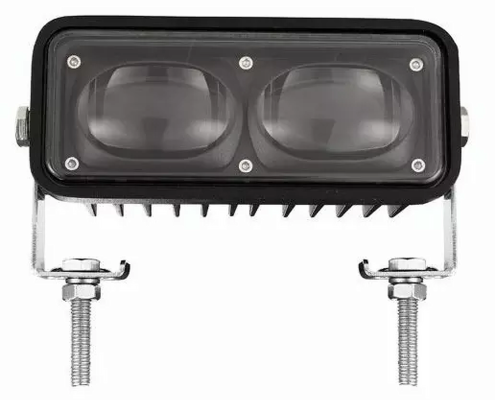

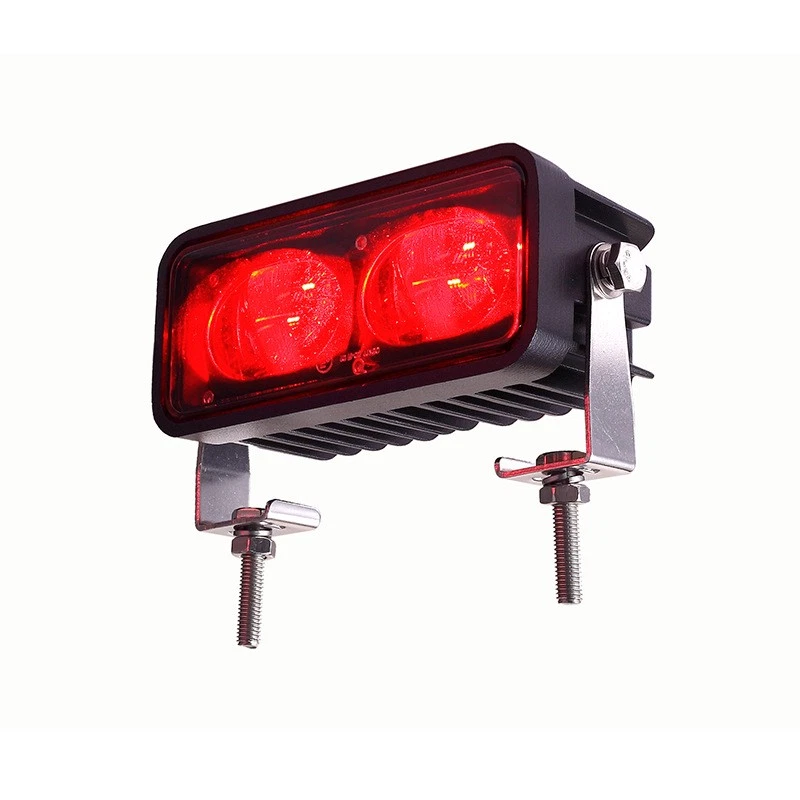

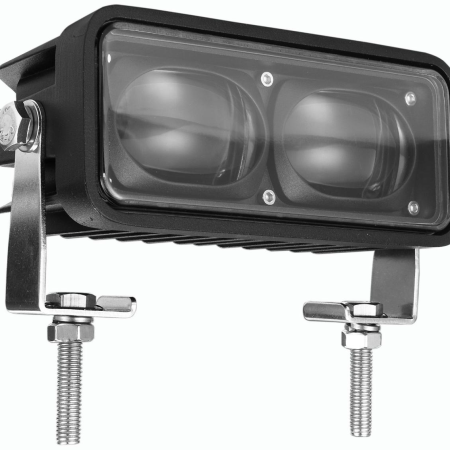

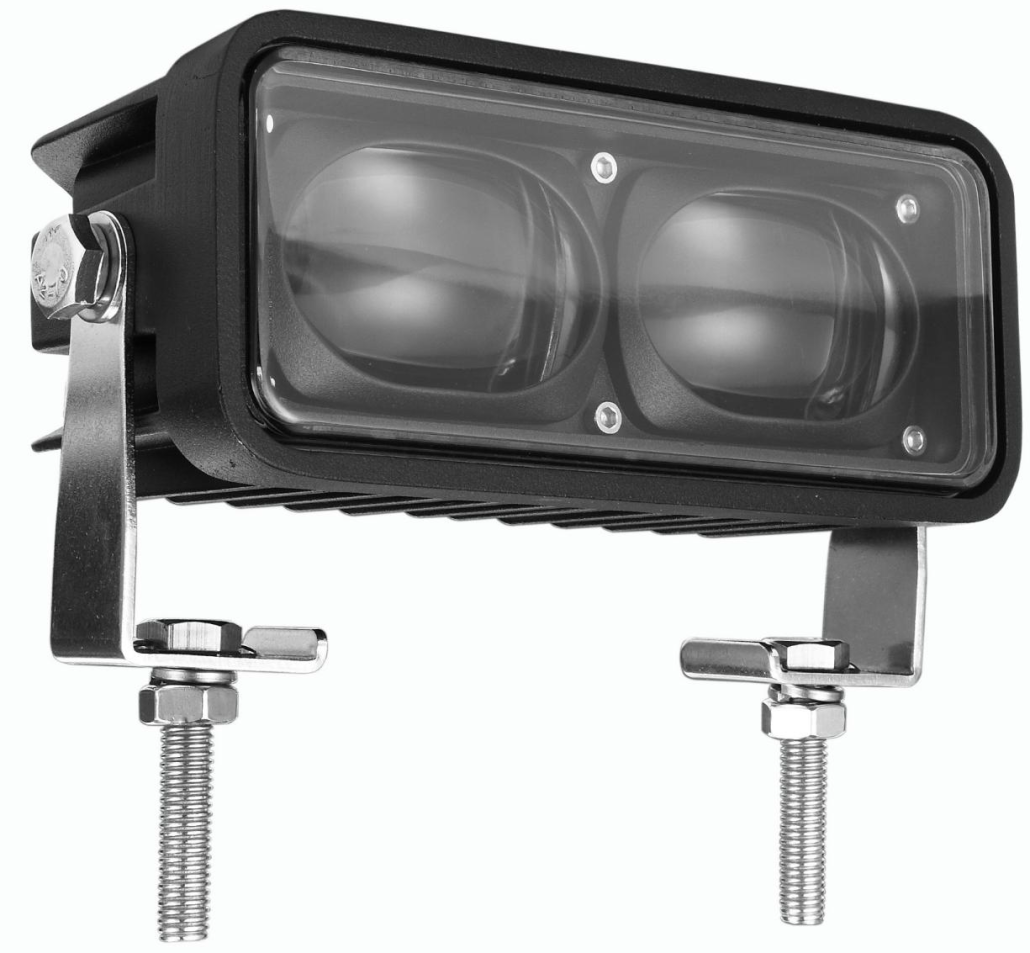

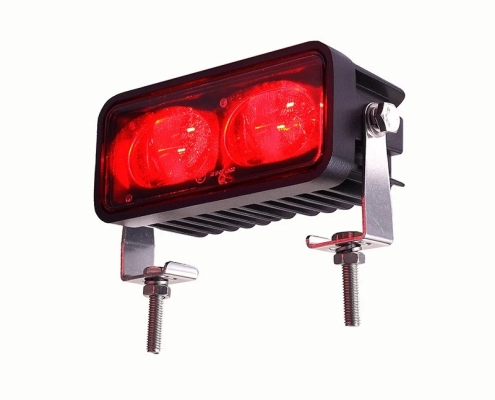

Forklift Safety Zone Red LED Lights
Our new generation Forklift Safety Lights are now 50% brighter!

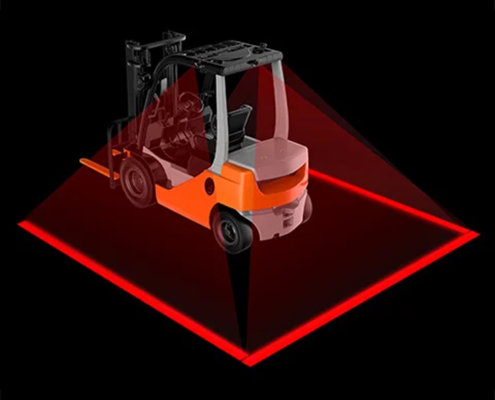

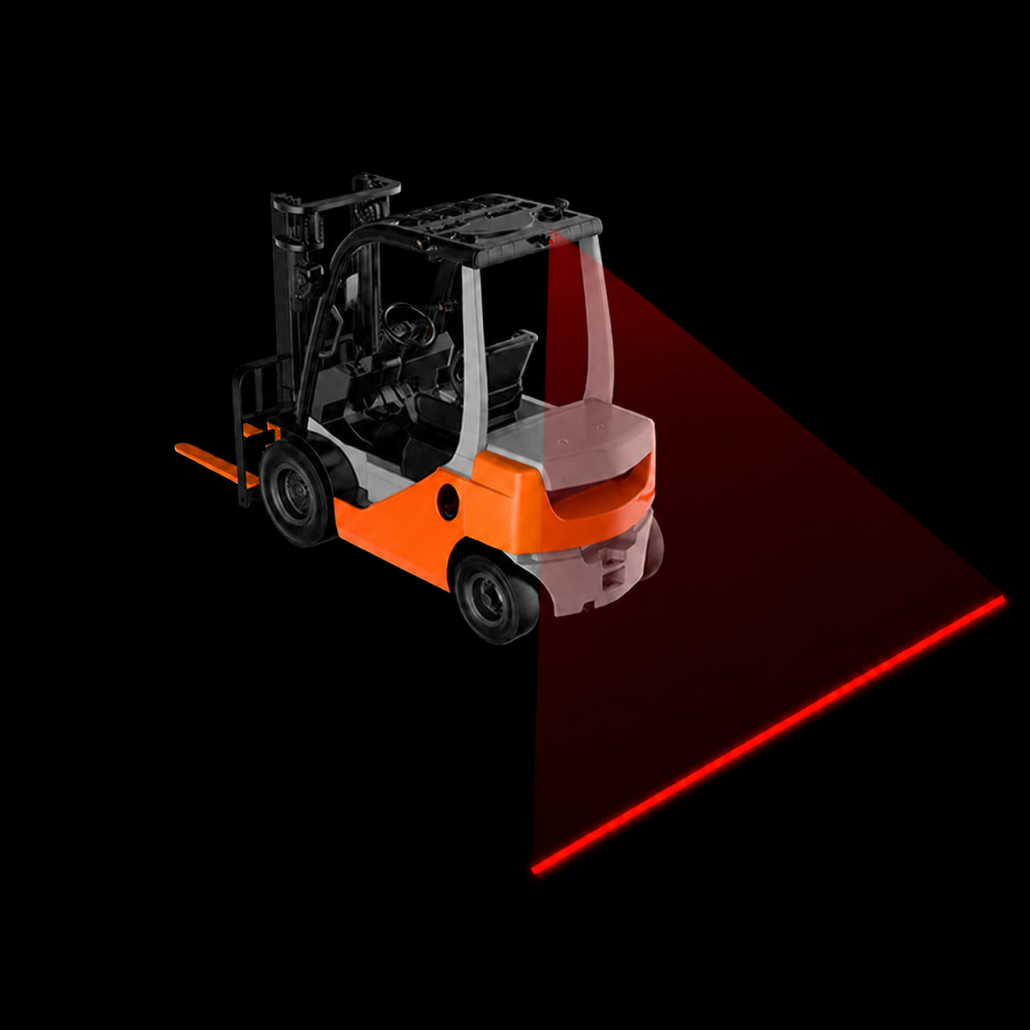

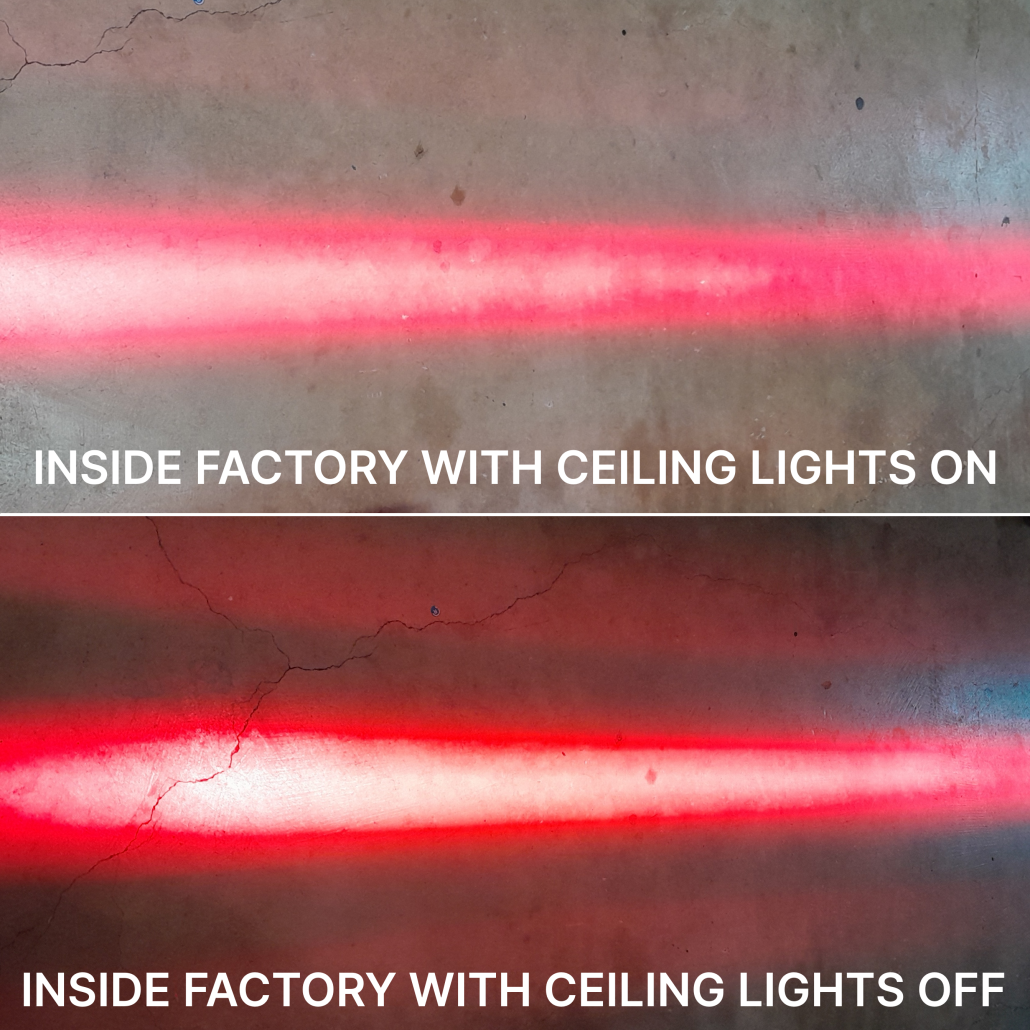

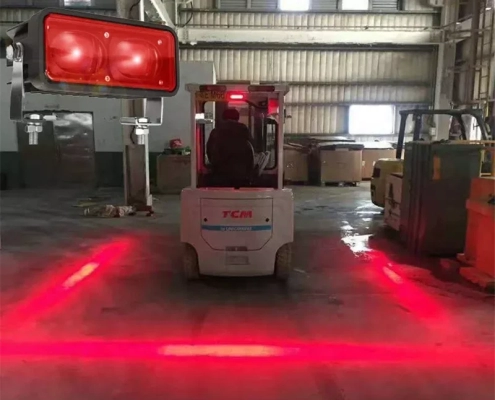

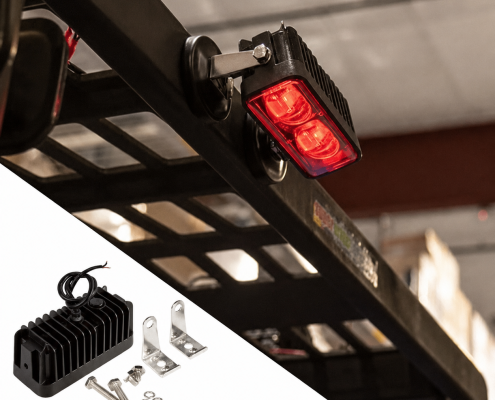

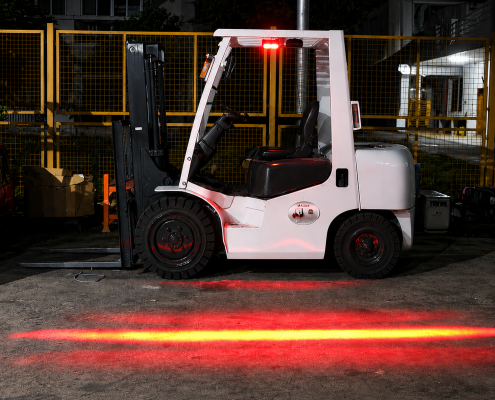

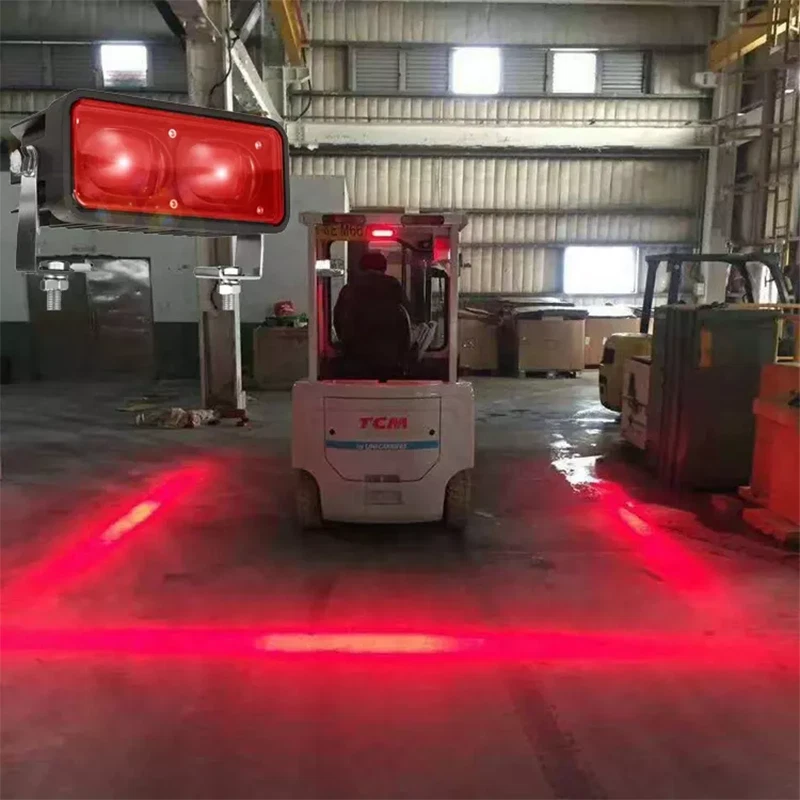

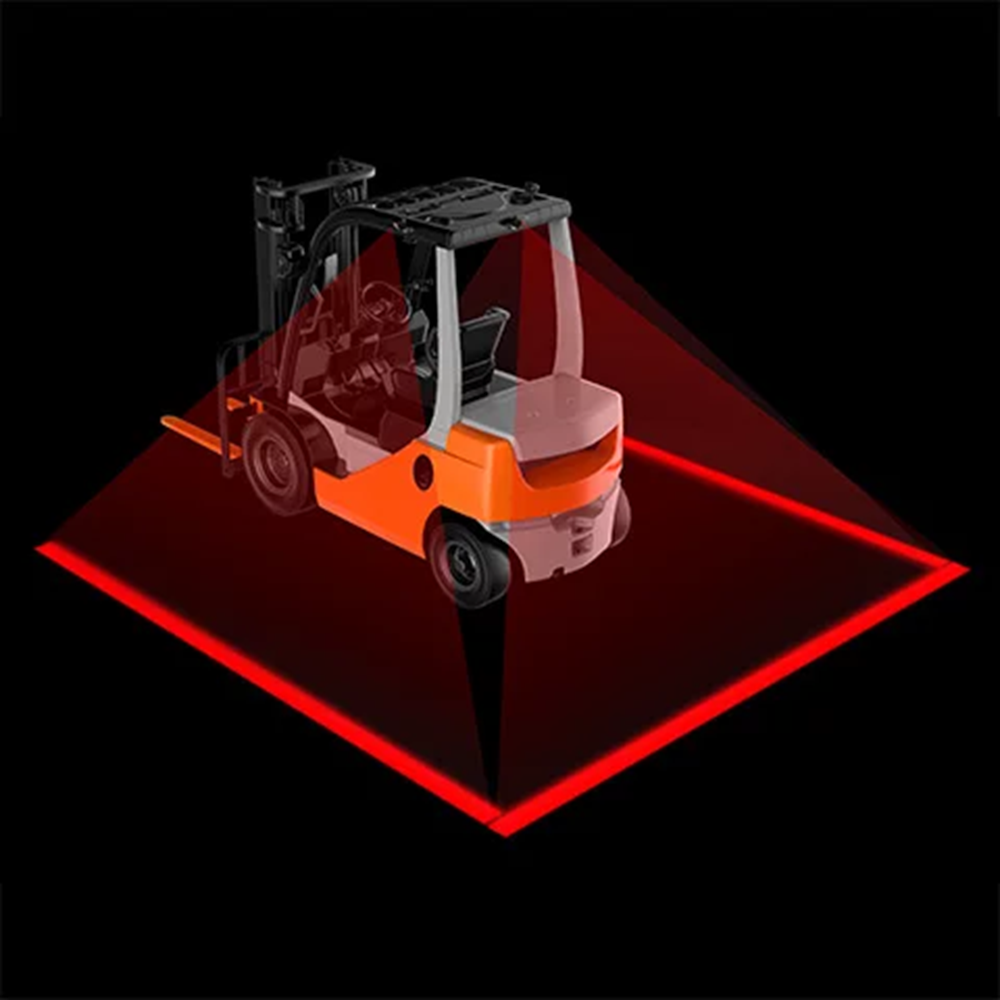

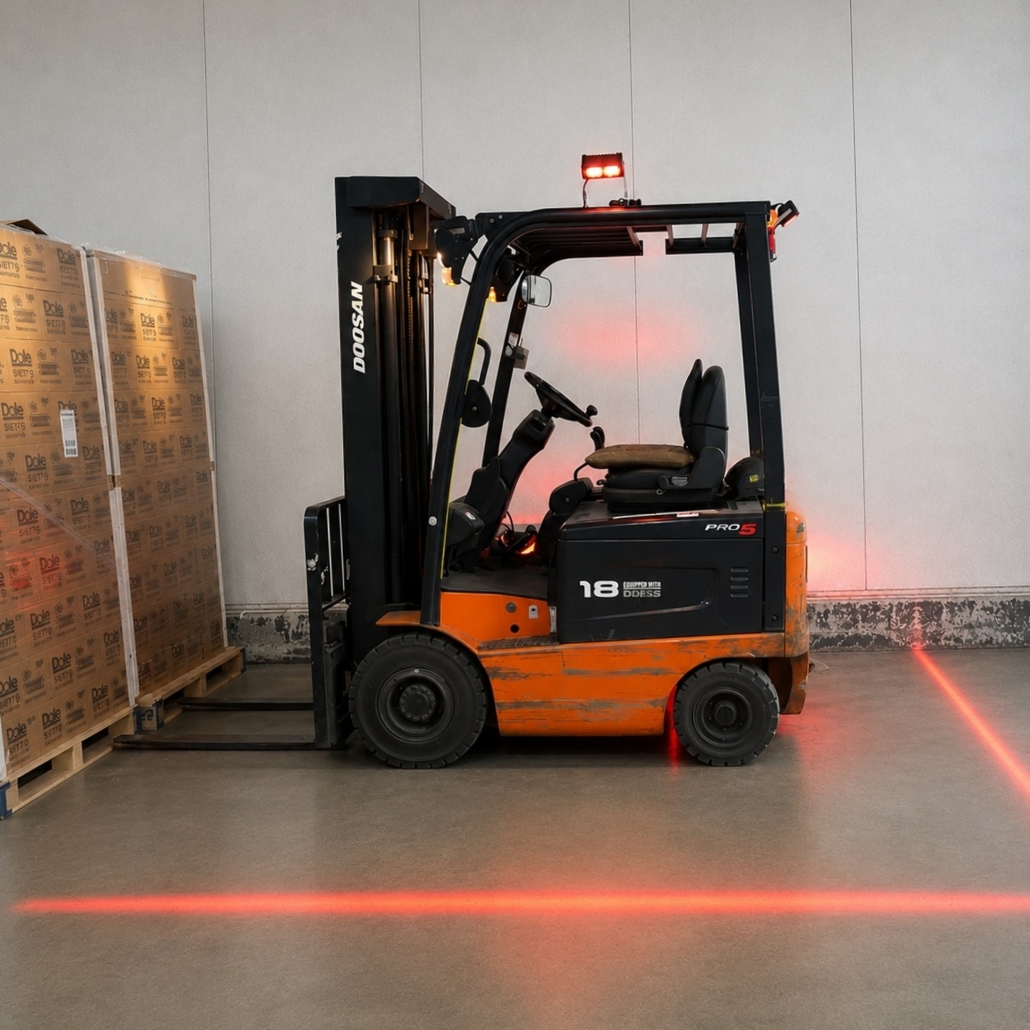

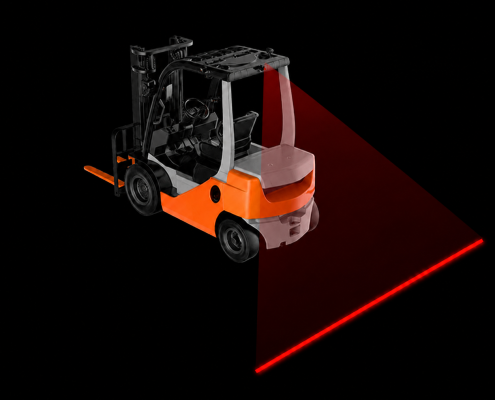

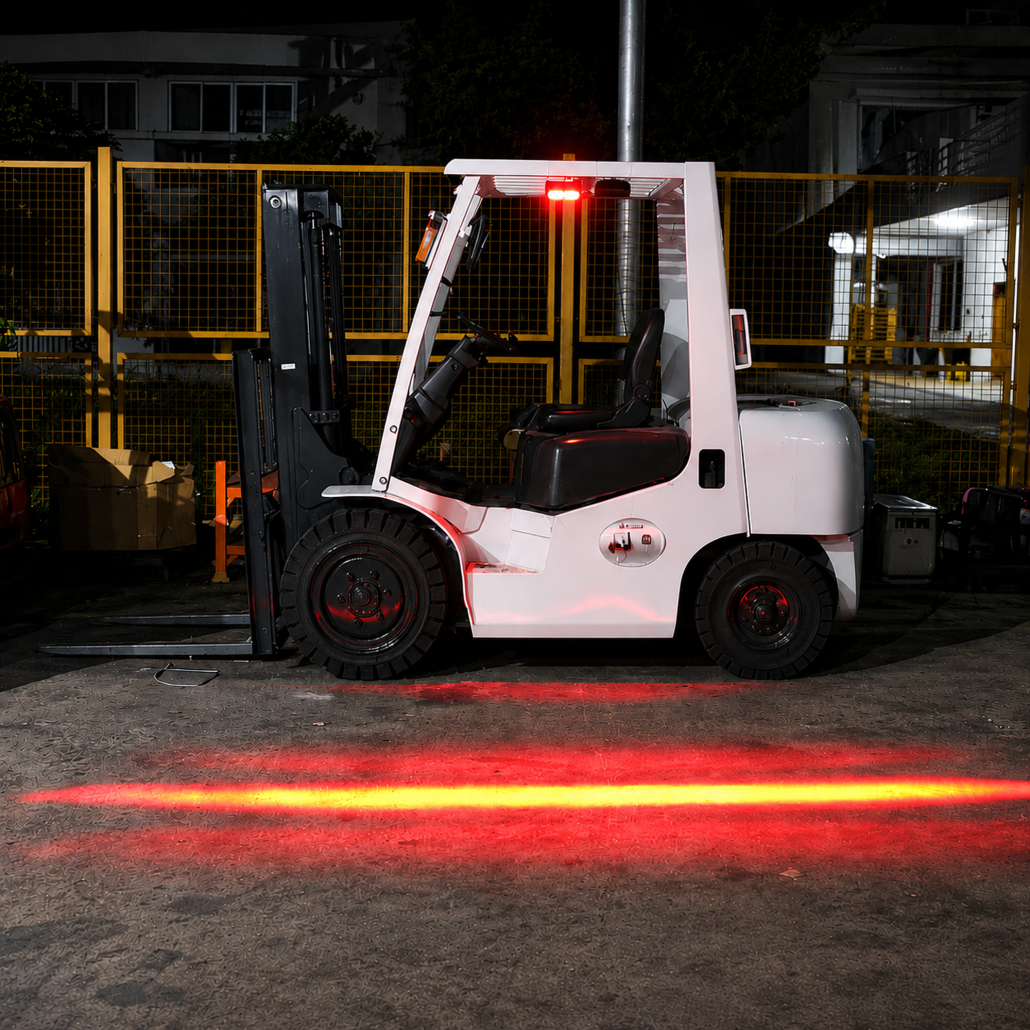

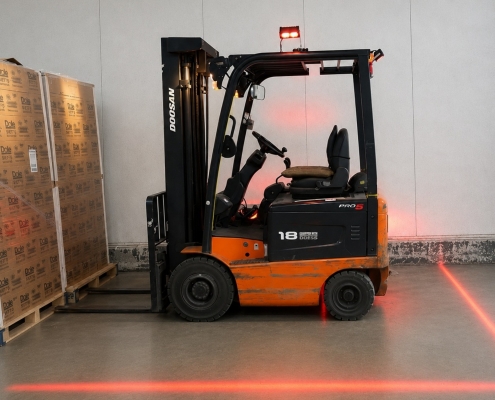

The Red LED Warning Lights are mounted on the top of the forklift cage and project a long, thin red beam on the floor adjacent to the forklift’s sides. The position of the light on the floor makes pedestrians aware of the safe distance to keep when alongside a forklift.
Suitable for all makes and models of forklifts and material handling equipment used predominantly indoors.

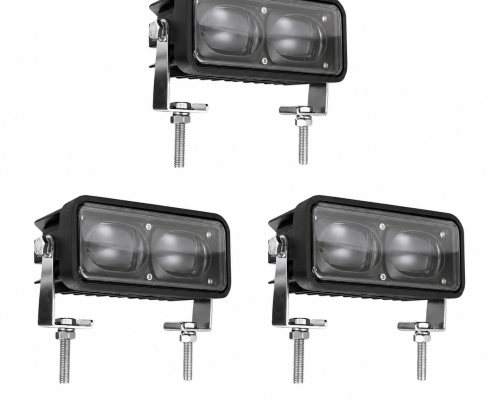

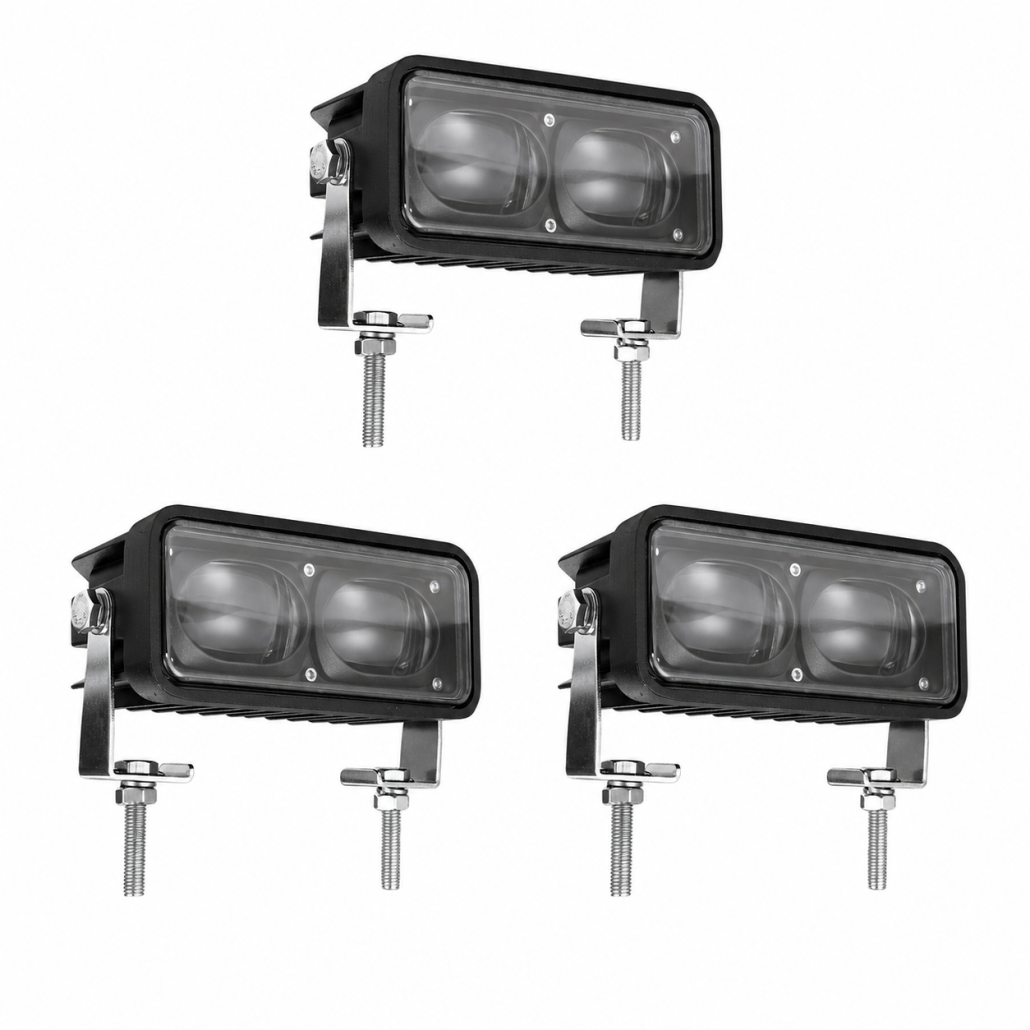

Available Individually (qty 1) or as a discounted Triple Pack (qty 3) as three safety lights are typically installed per forklift (left, right & rear). If you require a bulk quantity to fit out your fleet then please email us at hello@batterytechnologies.com.au and we will be pleased to offer you a bulk purchase discount.
Features
- Predominantly for indoor use

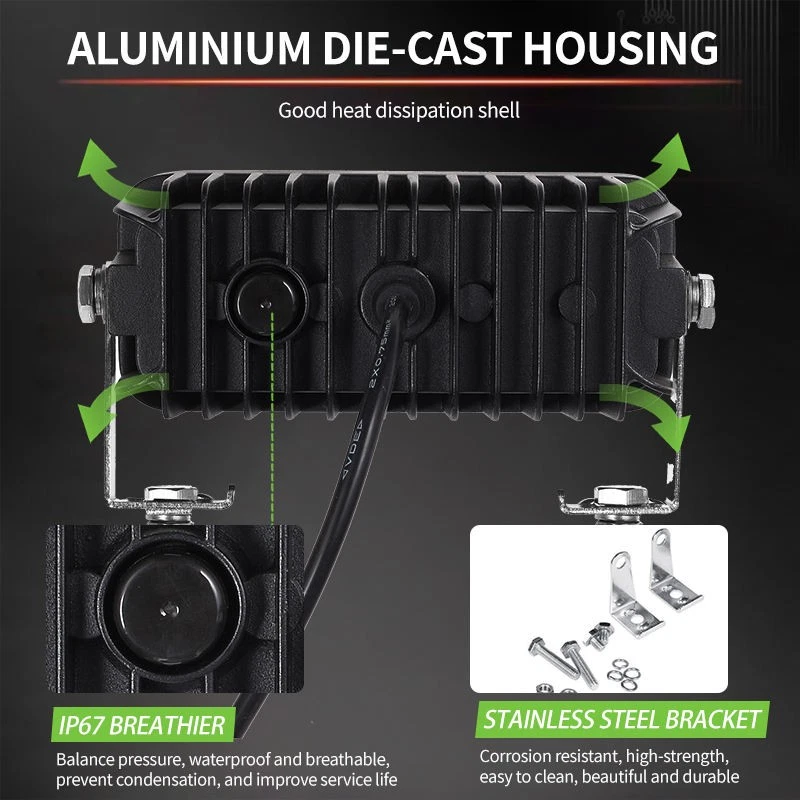

- Rugged Die Cast Aluminum Alloy Housing

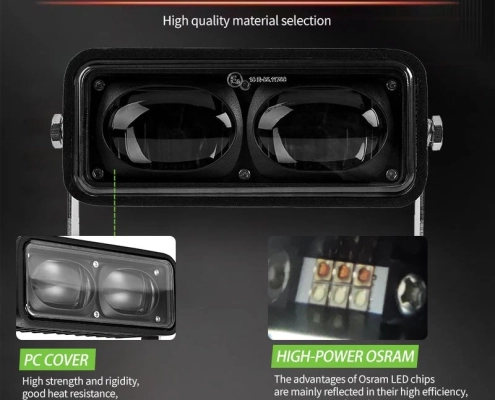

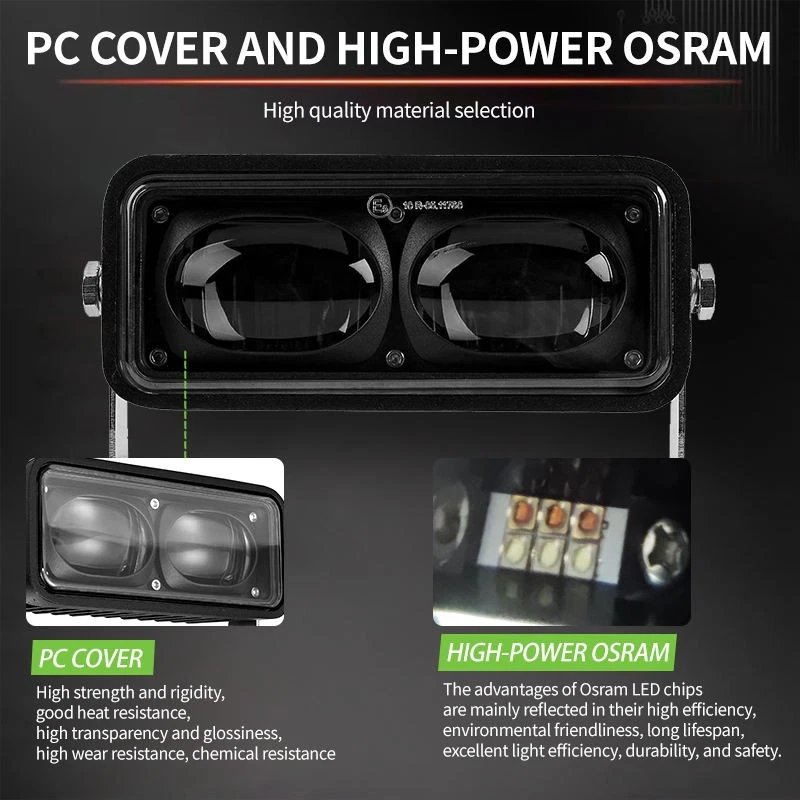

- Hard Coated Polycarbonate Lens

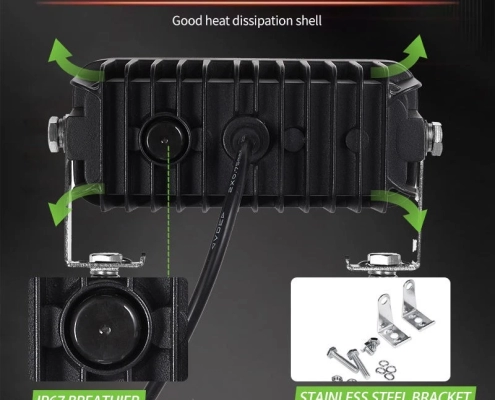

- Rear cooling fins for heat dissipation
- High Power OSRAM LED

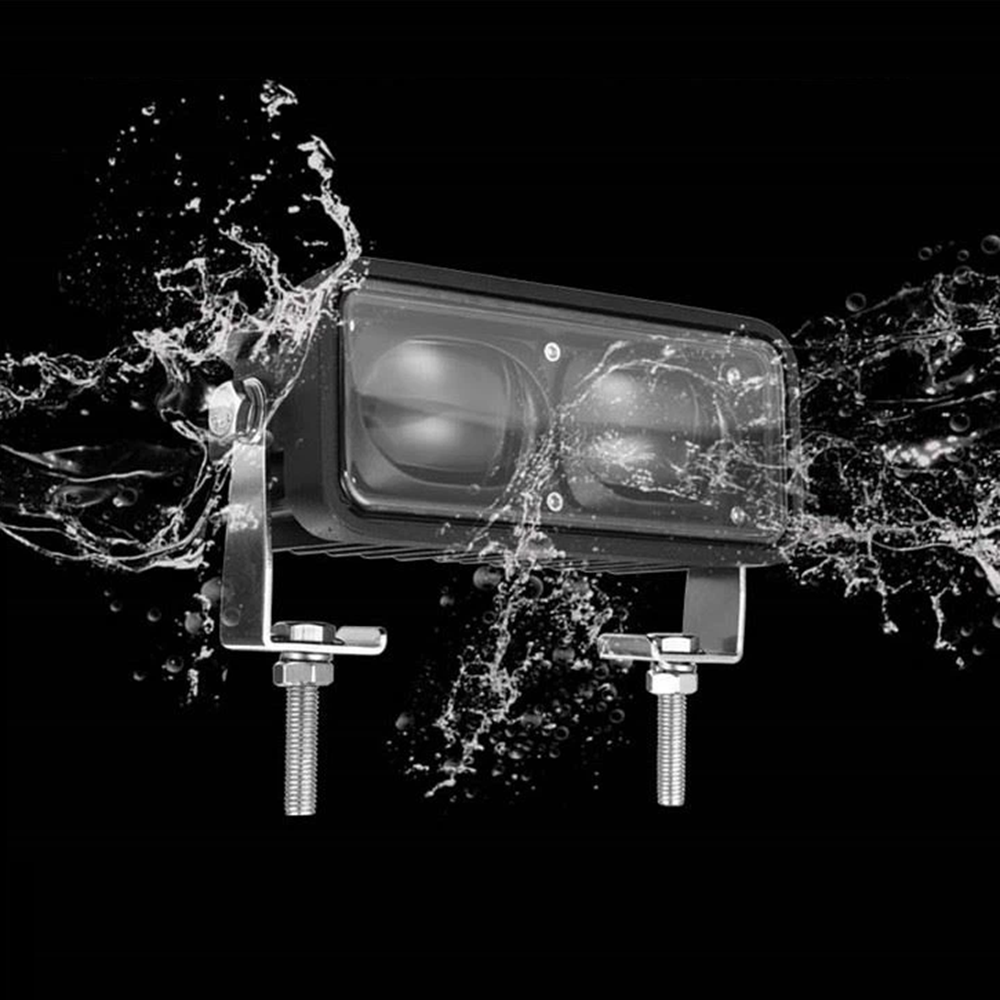

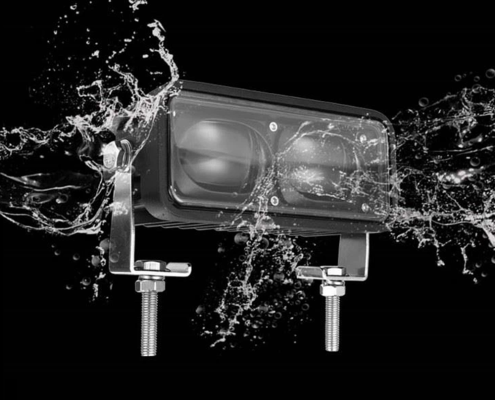

- Waterproof IP:67 Rated
- Dustproof
- Vibration Proof
- Shockproof
- Double insulated wire for electrical connection
- Suitable for Low and High Temperature Environments
- Reverse Polarity Protected
- Beam: Line Beam
- Warranty: 1 year
Technical Specifications
- LEDs: 6 x 3W Super Bright OSRAM High Power LEDs
- Voltage: 10～80V DC
- Color: Red
- Life Time: >50,000 Hours
- Working Temperature: -45°C to 85°C

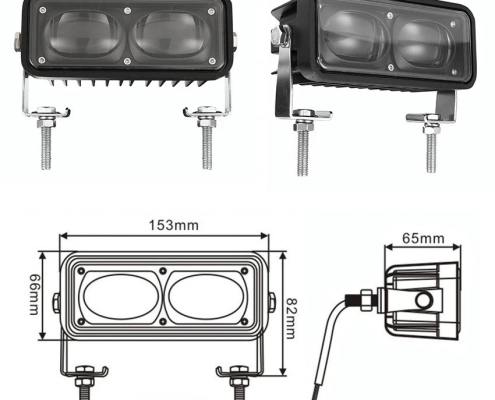

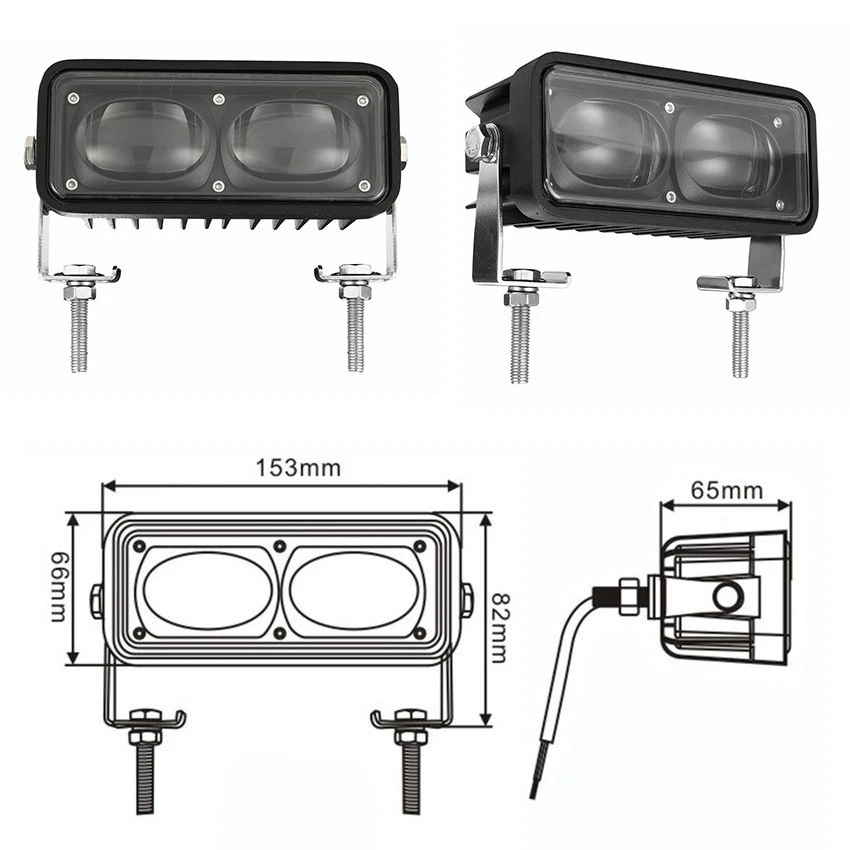

- Dimensions: 152 x 60 x 57 mm
Wiring
The Lights come with short +ve and -ve wires on the rear of the unit for your electrician, or an auto electrician, to wire up to your forklift as required. Some customers wire them so that they come on with the machine’s ignition so that they are always on, others add a switch so that the operator can turn them on and off as required. Every customer has different requirements so please have your electrician wire up to suit your unique operational needs.
Mounting

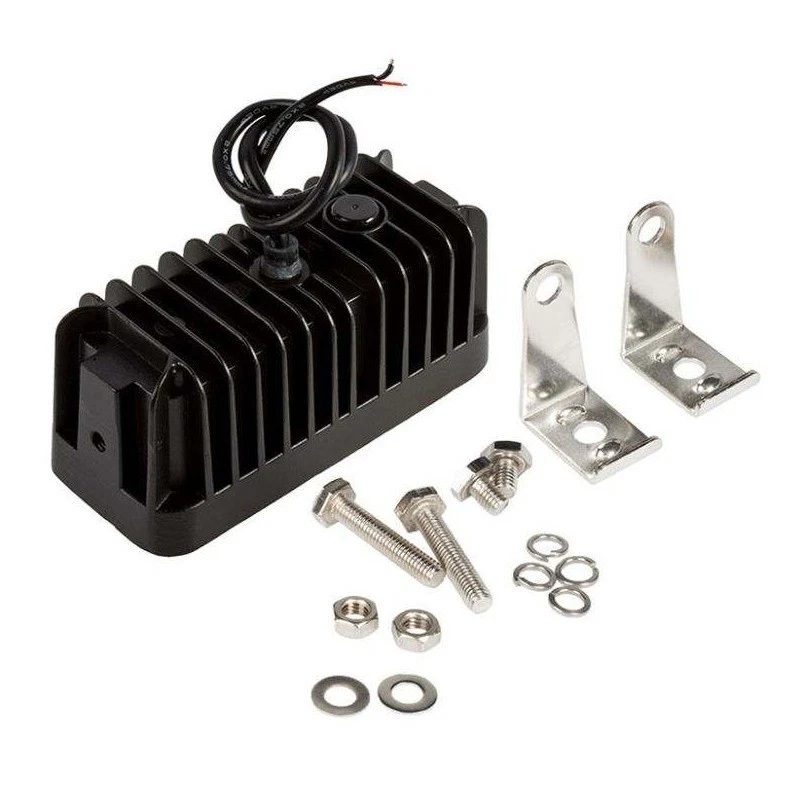

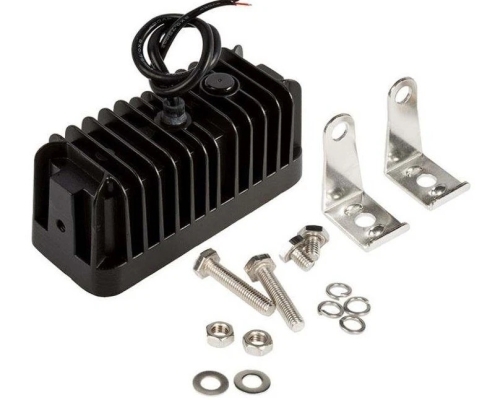

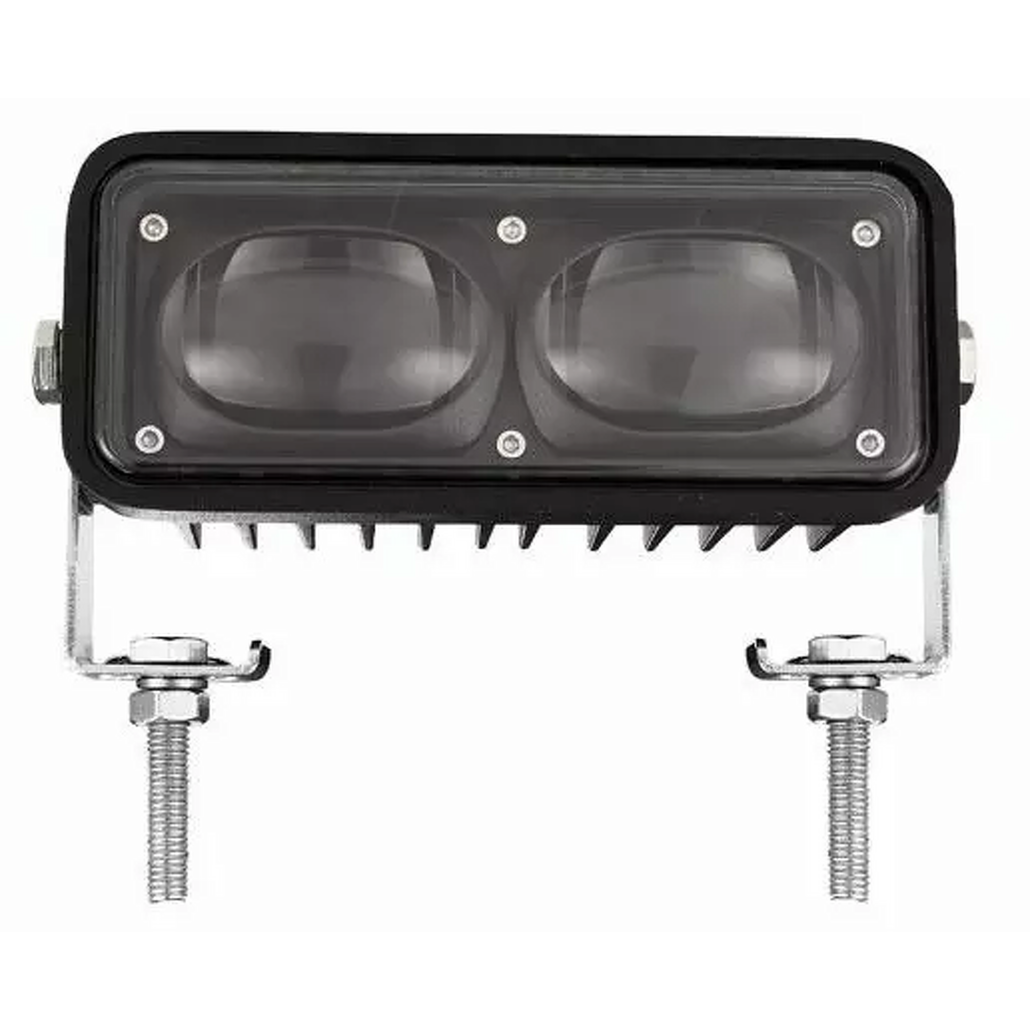

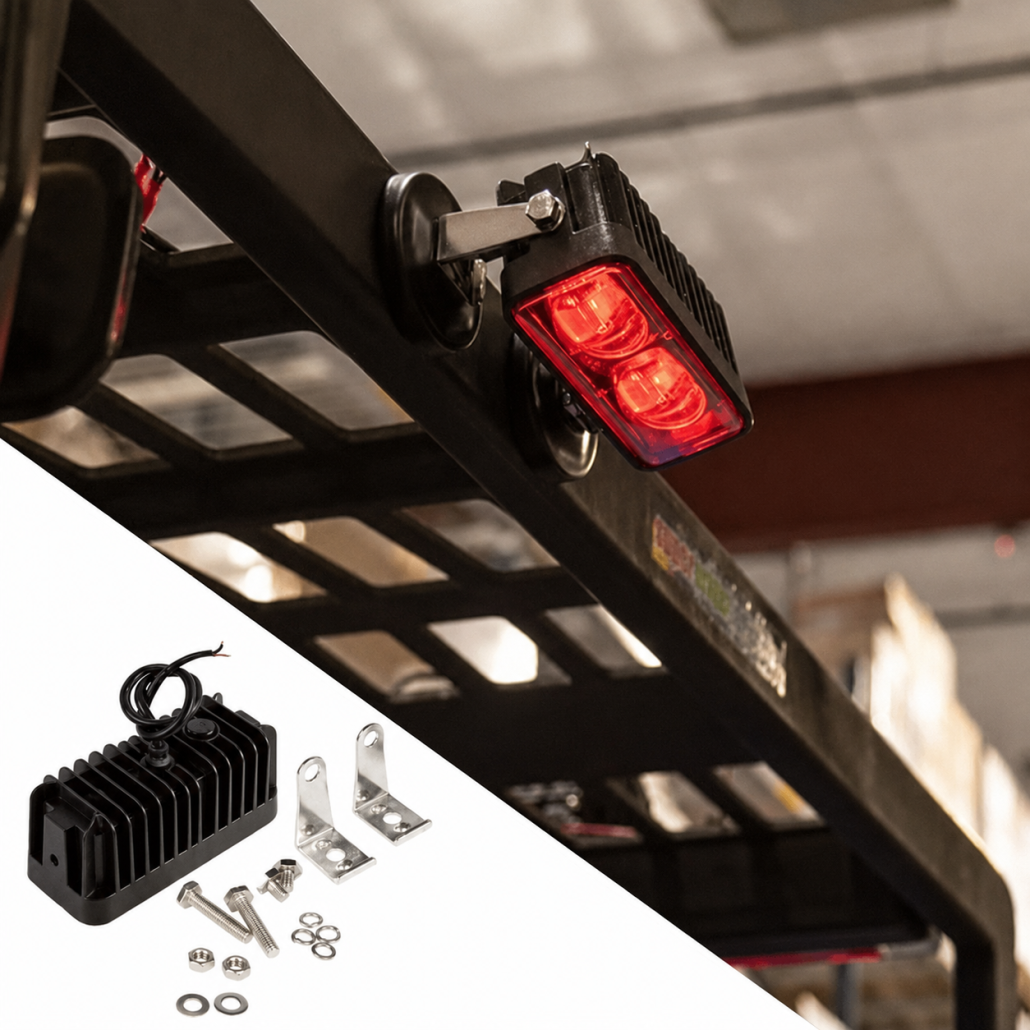

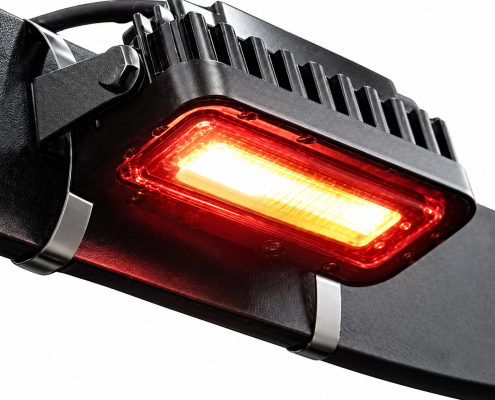

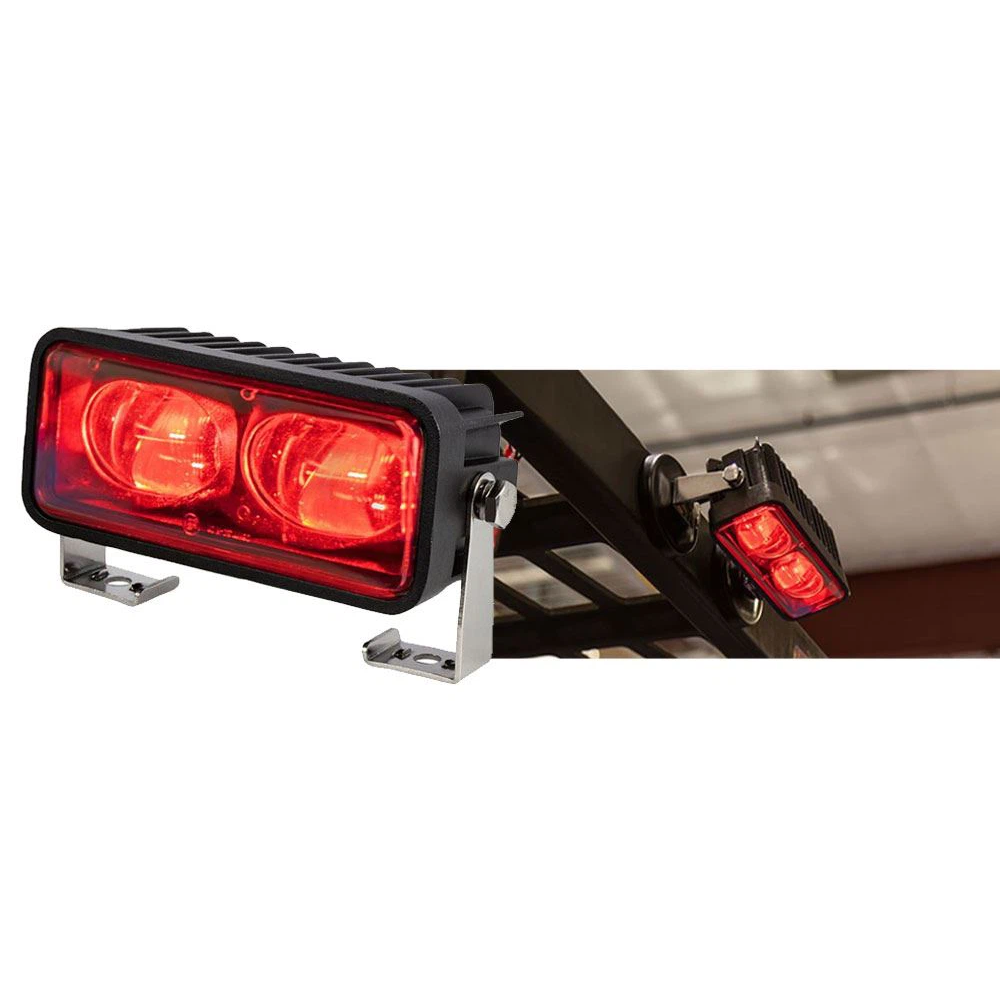

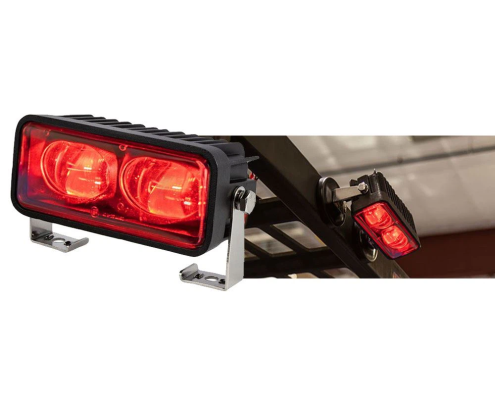

- Holes available/drilled in Forklift: Use Stainless Steel Mounting Brackets (included) and Stainless Steel Bolts (included)

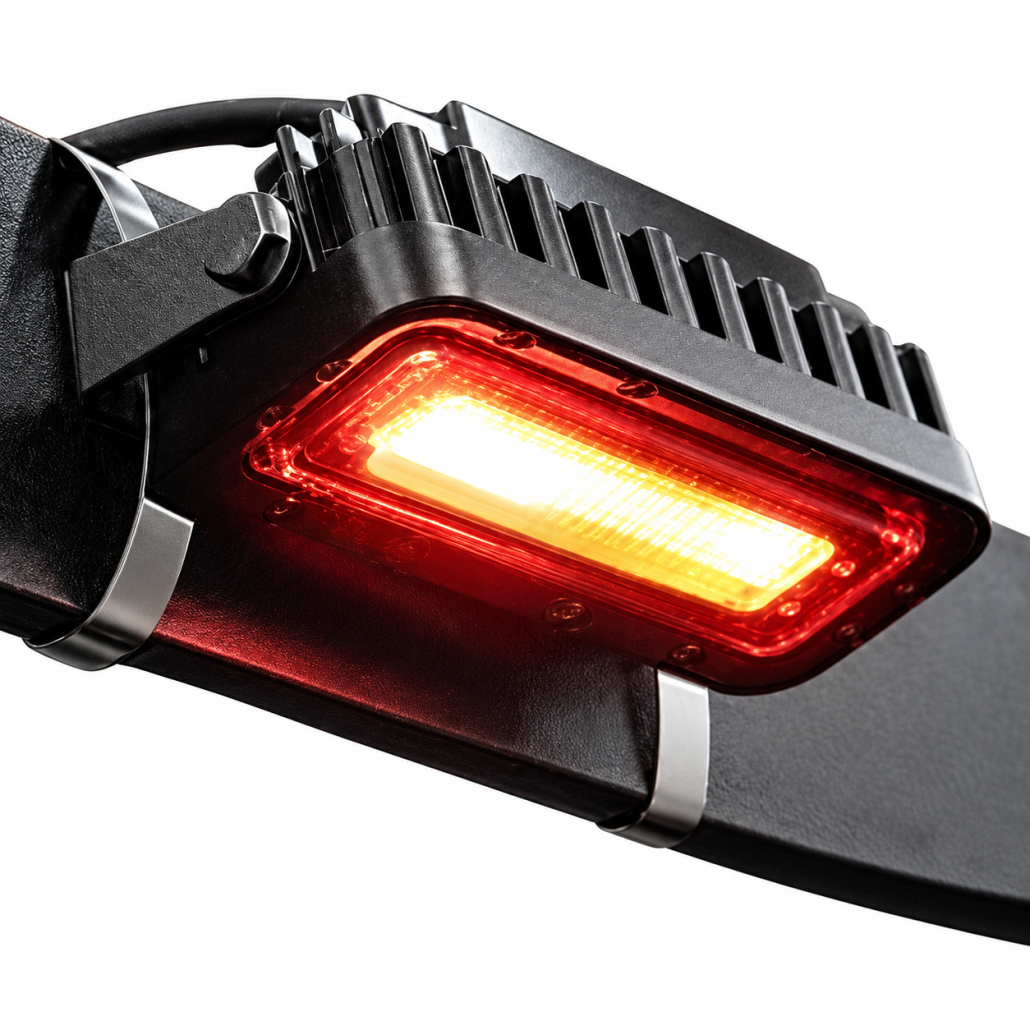

- Holes not available in Forklift: Use Stainless Steel Mounting Brackets (included) but remove the Stainless Steel Bolts and fasten the Zone Light to forklift cage with Stainless Steel Hose Clamps instead (not included).

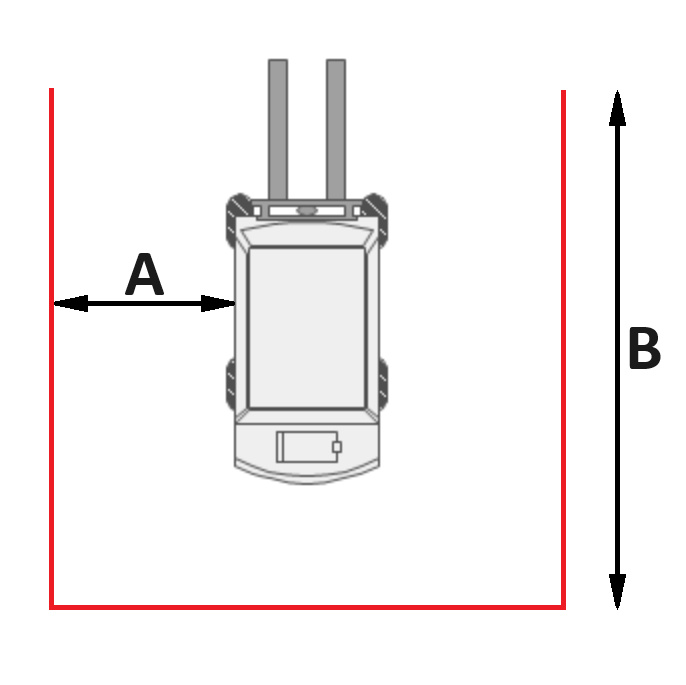

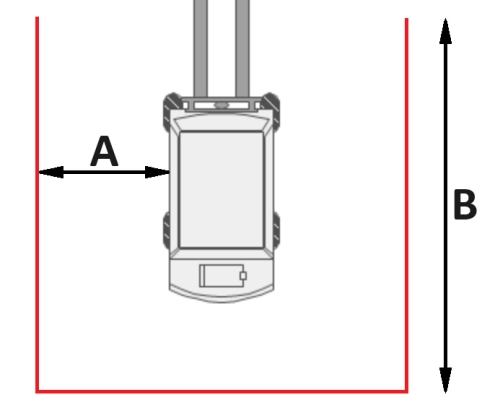

- Typically mounted and adjusted so Distance “A” is 0.5m – 1.5m away from Forklift

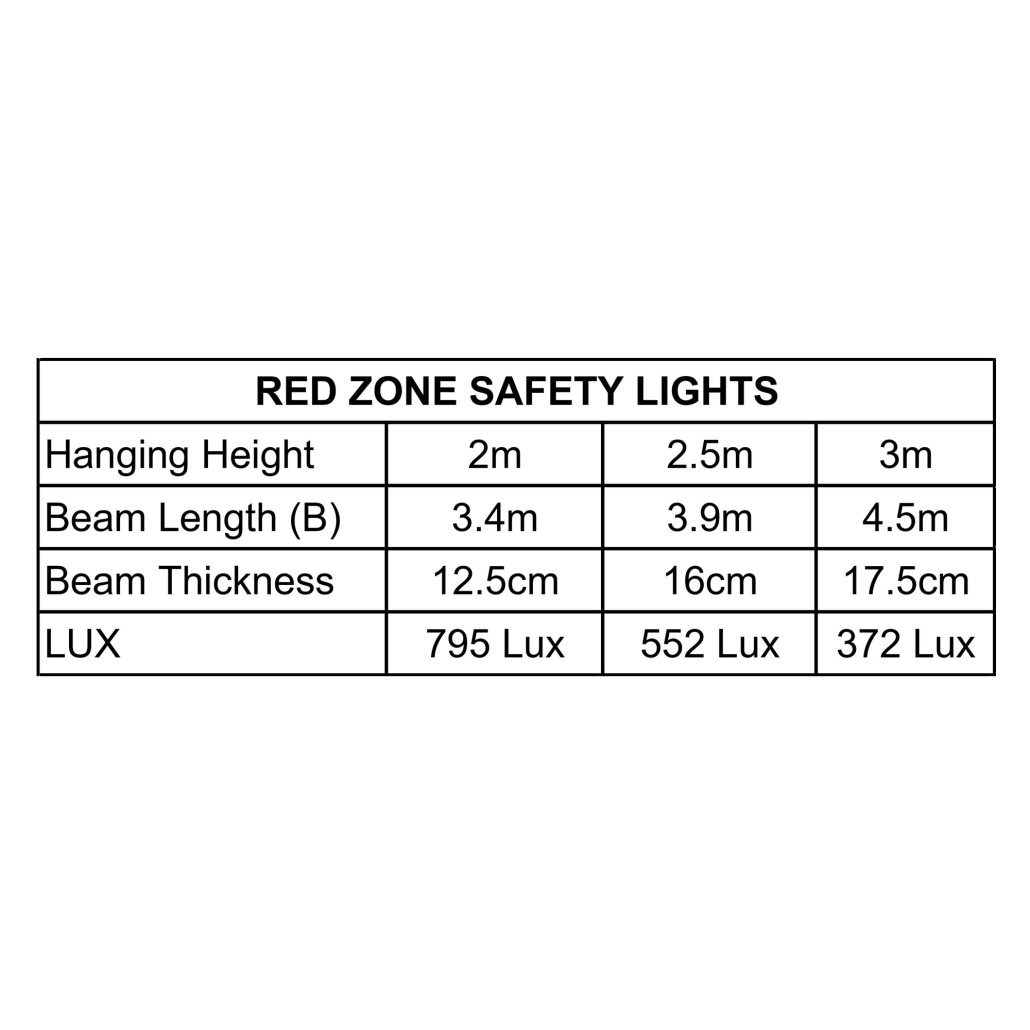

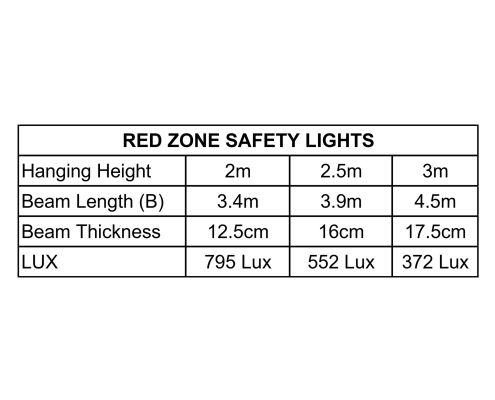

Hanging Height refers to the height above the ground. Typically the light is mounted on top of the forklift so Hanging Height is set by forklift height.
Beam Length refers to Dimension “B”.
Beam Thickness is how ‘fat’ the beam is on the ground, i.e. the higher the light the more it spreads and hence the fatter it is.
Lux is the measure of illuminance.
Available now from Forklift Battery Chargers Direct online store.
